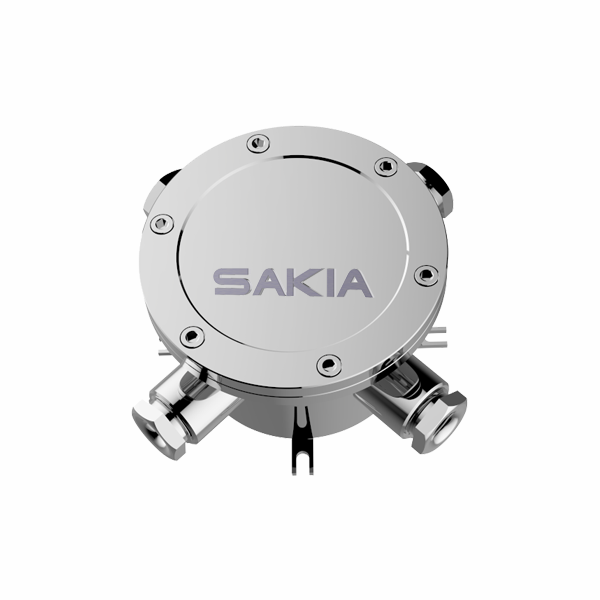

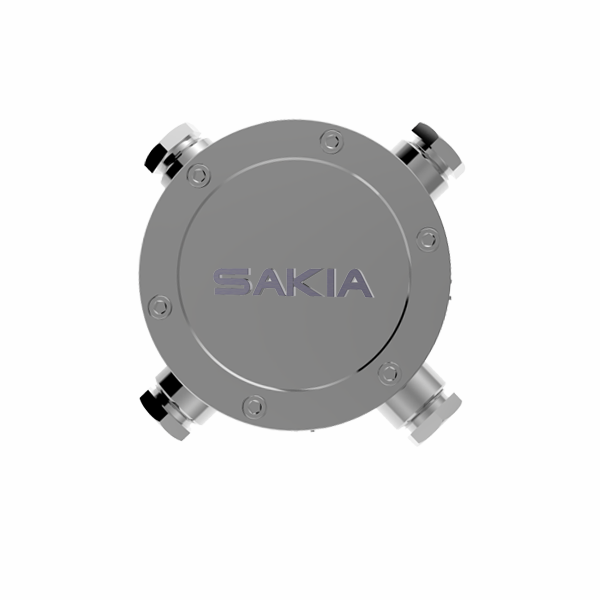

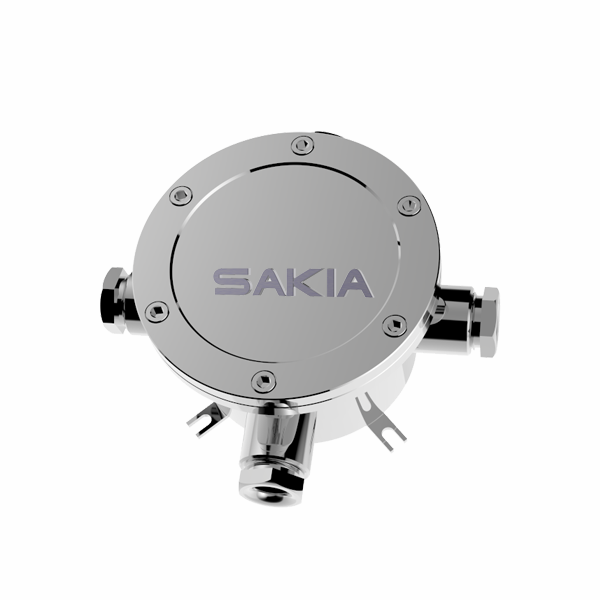

SF17 Explosion Proof Junction Box

  • 4pcs G3/4 or NPT3/4
  • -25 to +60℃
  • Inner Size:Φ100*75mm
  • Weight:3.5kgs
  • Product description: SF17 Explosion Proof Junction Box
  • INQUIRY

SF17 Explosion Proof Junction Box

Certificate

Certificate Mark

ExdⅡCT6 Gb/ Ex tD A21 IP68 T80

Certificate No

CNEx15.1278

Standards

Q/21392SF172-2015

Mechanical

Housing

Stainless steel 304 or 316L

IP

IP68

Cable thread hole

4pcs G3/4 or NPT3/4

Electrical

Voltage

AC85VAC265V

Current

3A

Max connection port

20pcs terminal block

Ambient

Ambient temperature

-25 to +60℃

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)

General

Overall size

Φ187*84mm

Inner Size

Φ100*75mm

Weight

3.5kg

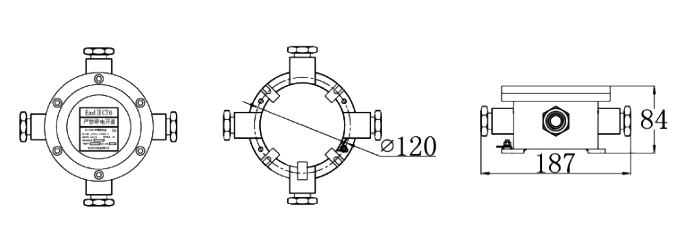

Dimension
