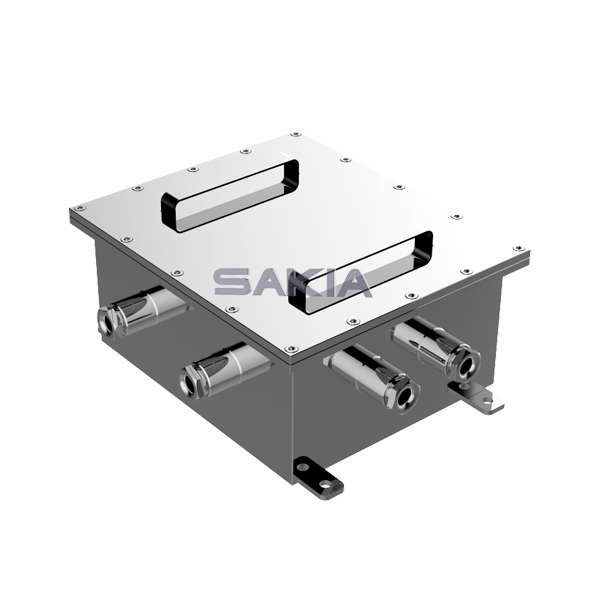

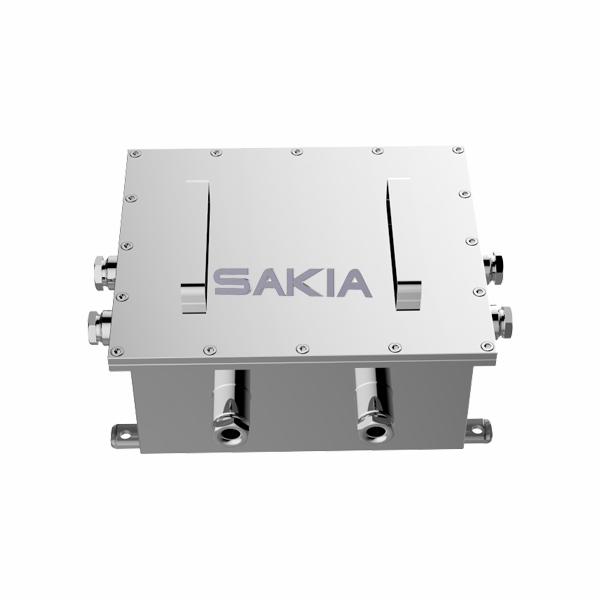

SF15 Explosion Proof Juction Box

  • IP66
  • -25 to +60℃
  • Inner Size:240*210*101mm
  • Weight:14kgs
  • Product description: SF15 Explosion Proof Juction Box
  • INQUIRY

SF15 Explosion Proof Box

Certificate

Certificate Mark

ExdⅡB(+H2)T6 GB/DIP A20 TA, T6

Certificate No

CNEx13.4589

Standards

Q/21392SF15S-2013

Mechanical

Housing

Stainless steel 304 or 316L

IP

IP66

Cable thread hole

6pcs G3/4 or NPT3/4

Electrical

Voltage

AC85VAC265V

Current

500mA

Power

50W

Surge Protect

Optional, TVS6000V surge protect

Optical Fiber output

Optional, multimode or single mode

Fiber distance

25km

Ambient

Ambient temperature

-25 to +60℃

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)

General

Overall size

382*308*144mm

Inner Size

240*210*101mm

Weight

14kg

Dimension
