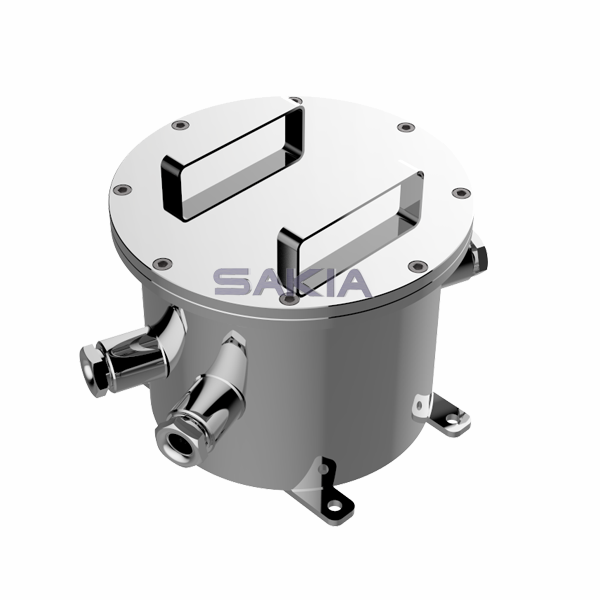

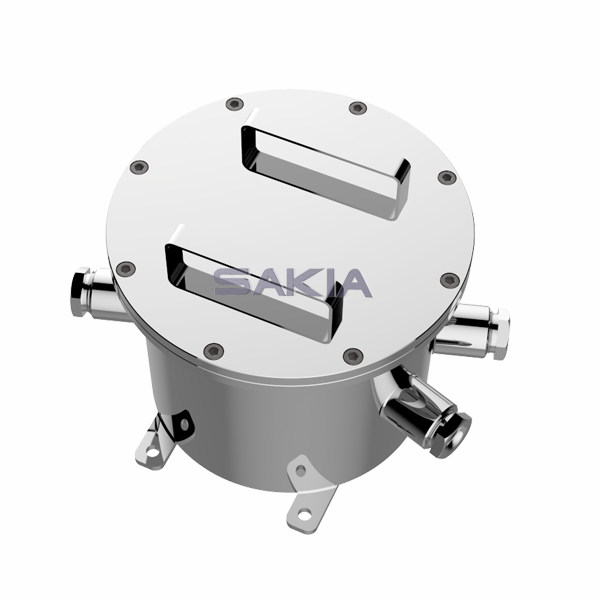

SF12 Explosion Proof Juction Box

  • IP68
  • Cable thread hole:4pcs G3/4 or NPT3/4
  • -25 to +60℃
  • Inner Size:Φ171*114mm
  • Product description: SF12 Explosion Proof Juction Box
  • INQUIRY

SF12 Explosion Proof Box

Certificate

Certificate Mark

ExdⅡC T6 GB/DIP A20 TA, T6

Certificate No

CNEx13.2337

Standards

Q/21392SF126-2013

Mechanical

Housing

Stainless steel 304 or 316L

IP

IP68

Cable thread hole

4pcs G3/4 or NPT3/4

Electrical

Voltage

AC85VAC265V

Current

500mA

Power

50W

Surge Protect

Optional, TVS6000V surge protect

Optical Fiber output

Optional, multimode or single mode

Fiber distance

25km

Ambient

Ambient temperature

-25 to +60℃

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)

General

Overall size

Φ305*159mm

Inner Size

Φ171*114mm

Weight

7.4kg

Dimension
