SNVR5832 H265. CHANNEL HD NVR

32CH
H265.
VGA
HDMI

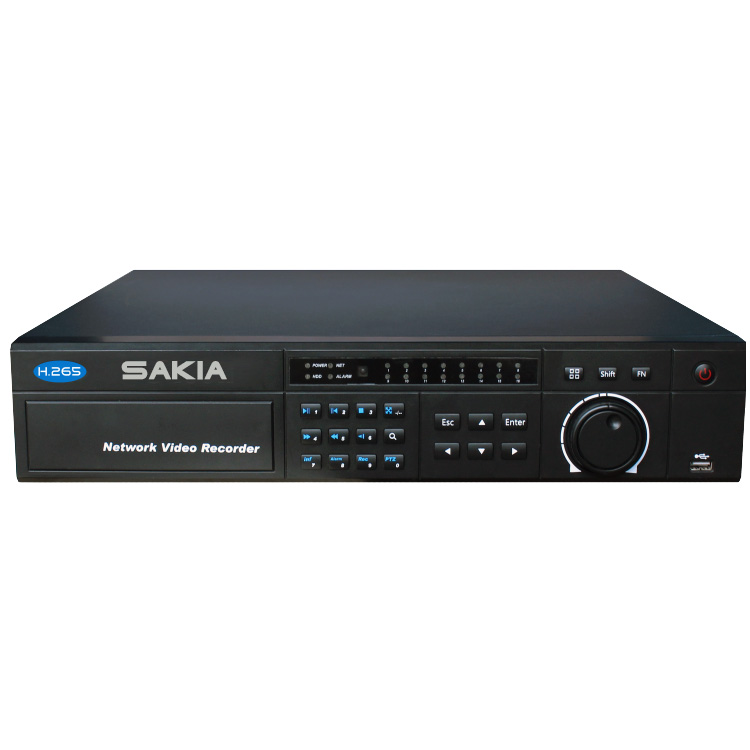

Product description: SNVR5832
INQUIRY

1．High performance and industrial-grade SOC chip with low power consumption and steady system.

Triple watchdog circuit protection system ensures no crashes phenomenon.

2．With embedded Linux system, a 16-bit colored image enhancement technology, a consummate UI operation interface style.

3．With an access capability to HD network cameras from 1 -5 megapixel.

4．Support ONVIF 2.4 protocol.

5．Full HDMI output, support HDMI, VGA, CVBS synchronization output.

6．With hard disk dormancy and Wake-on-LAN technology, which lower power consumption, improve the stability and prolong the hard disk life.

7．With hard disk S.M.A.R.T management technology; capacity is unlimited and health status of hard disk can be monitored at any time.

8．Hard disk dual redundant technology with data backup effectively ensures video security.

9．Network QOS automatically adjusting the code flow and network transmission strategy ensures the Network transmission reliability.

10．Plug and play, support P2P function, cloud services and cloud storage is provided.

11．Supports Iphone and Andriod

OS		Embedded Linux
master chip		Hi3536
Access Bandwidth		200M
Video&Audio input	Bidirectional Talk	1CH,BNC(Line in,2Vp-p,1Kohms)
Video&Audio input	IPC Input	up to 32ch 1080P/3MP/4MP/5MP
Video&Audio output	CVBS Output	1CH,BNC(1.0Vp-p,75ohms)
	VGA	1CH,Resolution 1920×1080,1280×1024, 1280×720,1024×768,800×600
	HDMI	Standard 1.3a
		Resolution 1920×1080, 1280×1024, 1280×720,1024×768,800×600
	Audio Output	1CH,BNC(Line out,2Vpp,300ohms)
Live Multi-screen display	1/4/9/16/32 Auto sequence (Local Monitor/Web)
Video&Audio encoding	Audio Compression	G711A
Video&Audio encoding	Audio Bit Rate	64Kbps
Video&Audio decoding	IP Resolution	Main stream:up to 5632x4224
	IP Resolution	Sub stream: no more than D1
	Video bitrate	2Mbps@D1, 4Mbps@720P, 8Mbps@1080P
	Video decoding	H.265/H.264 adaptive
	Synchronous Playback	Up to 16CH
Elligent Analysis	4CH Face detection or 8CH Perimeter detection
Resource capacity	Play back	6CH 1080P real time/4CH 3MP@25fps/3CH 4MP@25fps/2CH 5MP@25fps playback
Other Function	Bidirectional Talk	Two-way voice intercom function
	Motion Detection	Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
	Picture Capture	Local Capture&Web Capture
HDD Interface	SATA	8 SATA Interfaces(10TB Capacity each)
HDD Interface	ESATA	1 ESATA Interfaces
HDD		4TB 5400RPM GP each
Disk Management		JBOD/Linear, RAID 0 and RAID 1
Video Backup		Via USB/Network
Format		AVI/ASF etc

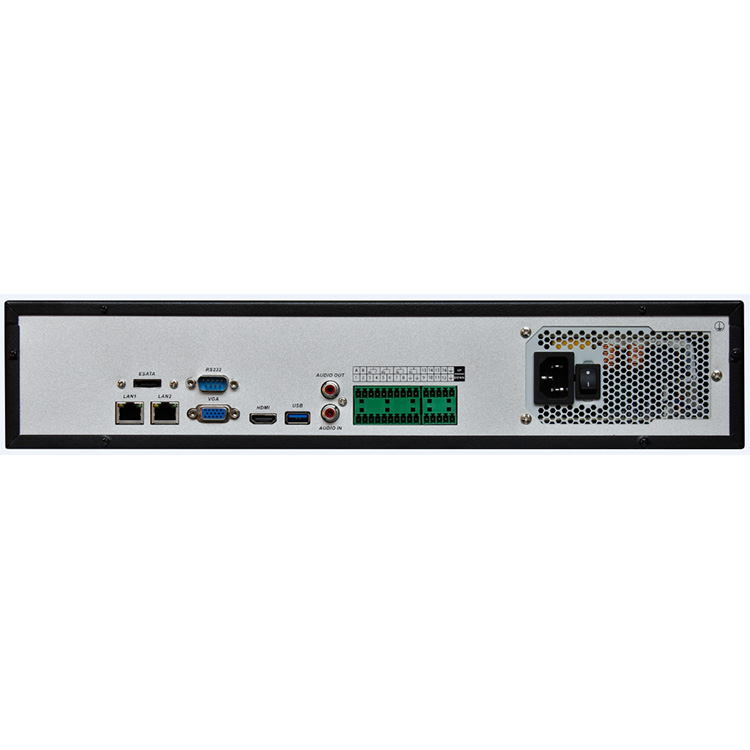

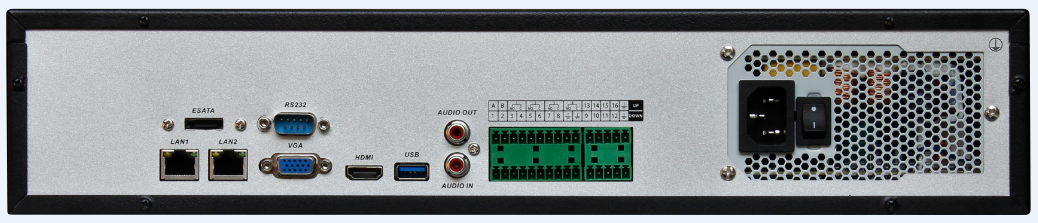

External Interface	Network Interface	2 RJ45 10M/100M/1000M adaptive Ethernet interface
	USB	2 USB 2.0 Interfaces
	POE port	N/A
	Alarm	16ch input / 4ch output
	RS-232	1RS-232 interface
	RS-485	1RS-485 interface
General	Dimensions	440x450x90mm(W×D×H)
	Weight	7Kg (without HDD)
	Power Supply	110V~220V±10%, 47Hz～63Hz
	Working Temperature	-10°C--＋55°C
	Working Humidity	10%--90%
	Consumption	20W(without HDD)
