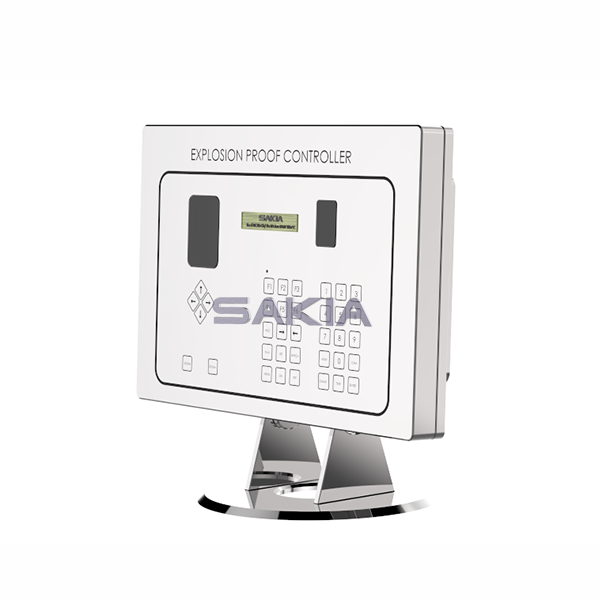

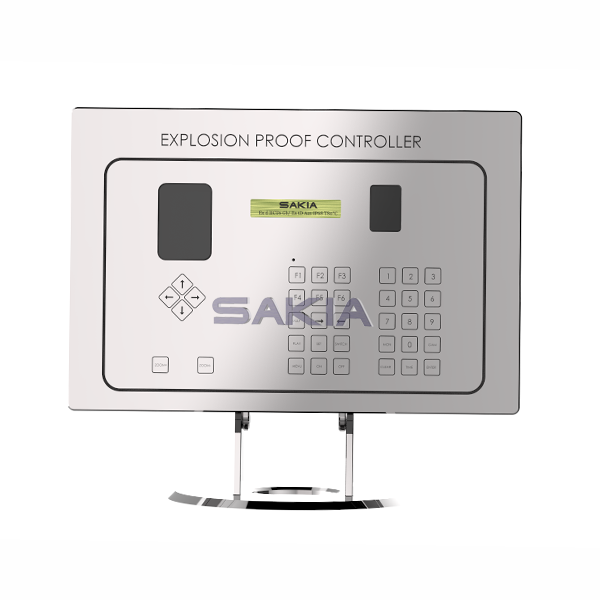

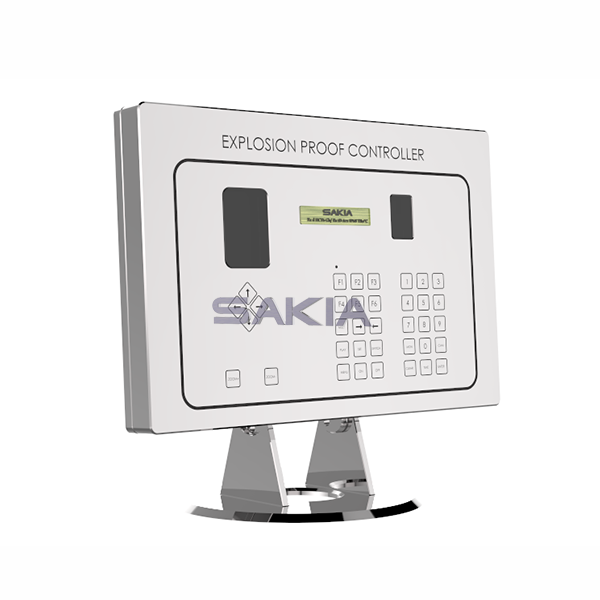

SP14 Explosion Proof Controller

  • Cable thread hole:6pcs G3/4 or NPT3/4
  • RS485, Support Pelco-D, Pelco-P
  • -25 to +60℃ / -45 to +80℃
  • 300*170*255mm/15kgs
  • Product description: SP14 Explosion Proof Controller
  • INQUIRY

SP14 Explosion Proof Controller

Certificate

Certificate Mark

ExdⅡB T6 Gb / DIP A20, TA T6

Certificate No

CNEx14.3178

Standards

Q/21392SP141-2014

Mechanical

Housing

Stainless steel 304 or 316L

IP

IP66

Cable thread hole

6pcs G3/4 or NPT3/4

Electrical

Voltage

AC85VAC265V or DC24Vor AC24V

Power

50W

Surge Protect

Optional, TVS6000V surge protect

Ambient

Ambient temperature

-25 to +60℃ / -45 to +80

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)

Communication

Communication

RS485, Support Pelco-D, Pelco-P

Communicate Rate

2400 to 19200bps

Video Input

4-Channel

Video Output

1-Channel

General

Cable

integrated cable

Size

300*170*255mm

Weight

15kg

Dimension
