Explosion Proof Camera Fixed

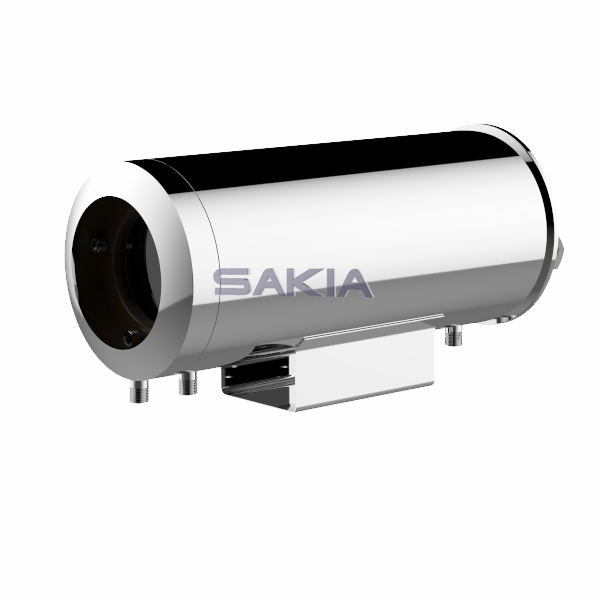

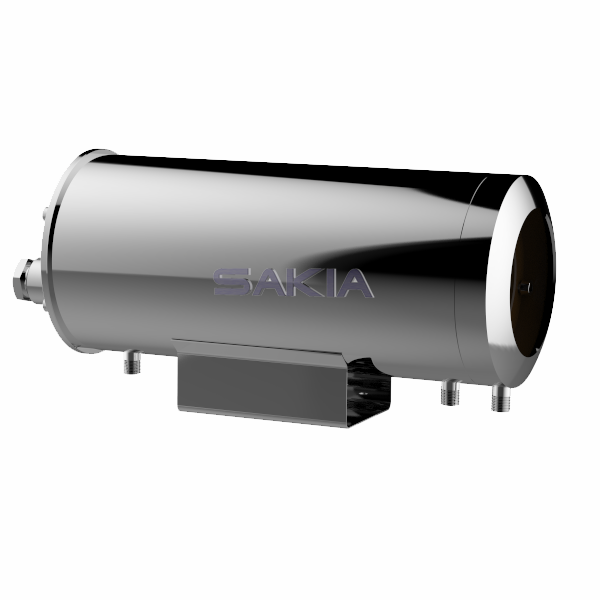

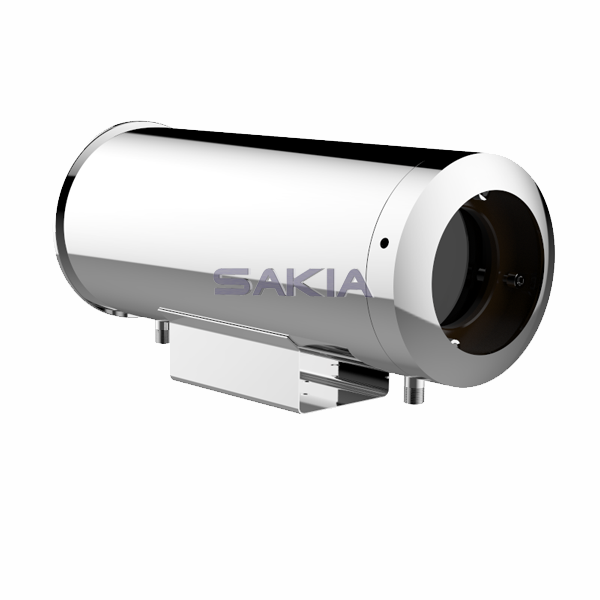

SH35 Air/ Water Cooling Explosion Proof Camera Housing
- AC85V～AC265V or DC24Vor AC24V
- Air cooling -25 to +150℃ , water cooling 0 to +250℃
- Housing inner size:260*80*80mm
- Weight:6.1KGS
- Product description: SH35 Air Water Cooling Explosion Proof Camera Housing
SH35 Air/ Water Cooling Explosion Proof Camera Housing
Certificate
|
Certificate Mark |
ExdⅡC T5 GB/DIP A20 TA, T5 |
|
Certificate No |
CNEx13.6242 |
|
Standards |
Q/21392SH165-2013 |
Mechanical
|
Housing |
Stainless steel 304 or 316L |
|
IP |
IP68 |
|
Cable thread hole |
2pcs G3/4 or NPT3/4 |
Electrical
|
Voltage |
AC85V～AC265V or DC24Vor AC24V |
|
Power |
15W |
Ambient
|
Ambient temperature |
Air cooling -25 to +150℃ , water cooling 0 to +250℃ |
|
Air pressure |
80Kpa to 106Kpa |
|
Relative Humidity |
≦95% (no condensation) |
General
|
Size |
374*163*185mm |
|
Housing inner size |
260*80*80mm |
|
Weight |
9.1kg |
|
Mounted |
wall, pole |
|
Wall bracket |
SP16 |

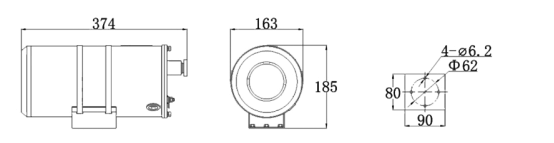

Dimension
