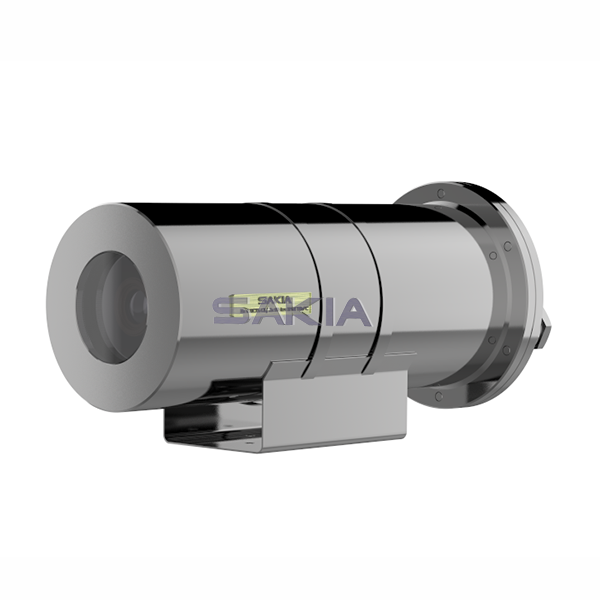

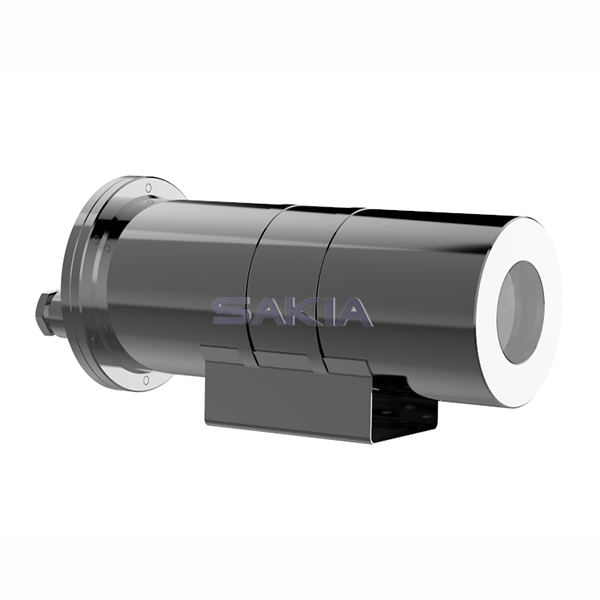

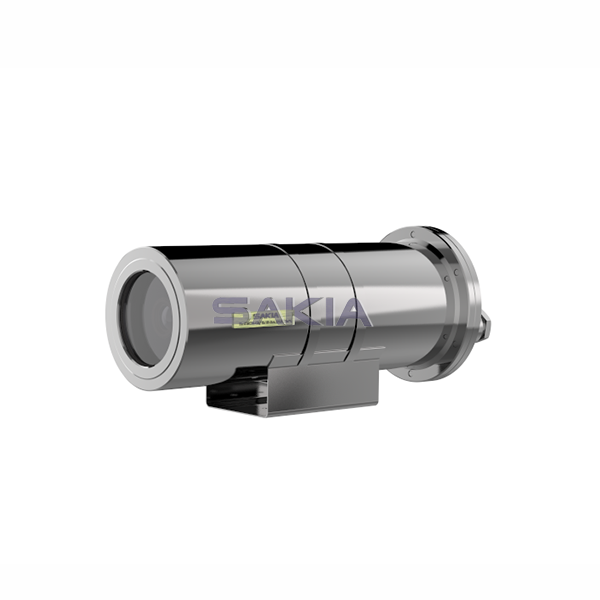

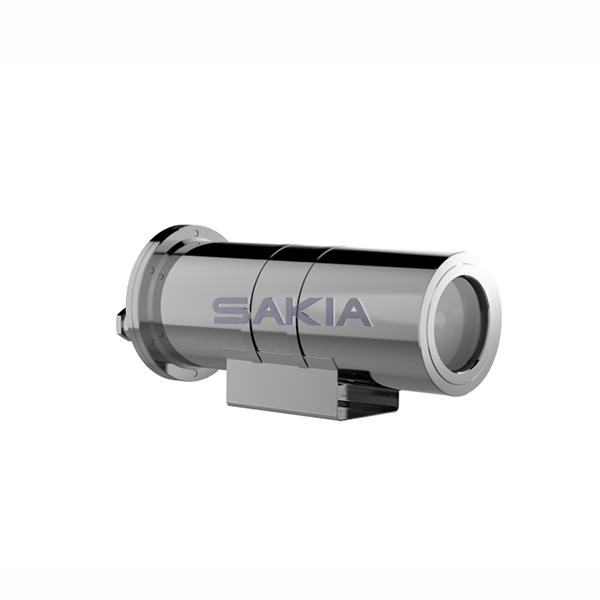

SH15 Explosion Proof Camera

Certificate Mark

ExdⅡC T6 GB/DIP A20 TA, T6

Certificate No

CNEx15.1263

Standards

Q/21392SH12-2015

Housing

Stainless steel 304 or 316L

IP

IP68

Cable thread hole

2pcs G3/4 or NPT3/4

Sun-shield

No

Wiper

No

Voltage

DC24Vor POE

Power

8W

Ambient temperature

-25 to +60℃

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)

Alarm Input

2-channel/ 7-channel

Alarm Output

1-channel, action with alarm

Intelligent Alarm

Audio detective, move detective, video shield, network interrupt, IP address conflict, storage full, storage error, illegal access

Audio Input

Audio input (LINE input, MIC input), audio peak:2-2.4Vp-p,output impedance: 1KΩ+10%

Audio Output

Line-level impedance 600Ω

Network Interface

1pcs of RJ45, support 10M/100M/1000M

Video Compression

H.264 main profile / MJPEG

Audio Compression

G.722.1/ G.711-a law/ G7.11-u law/MP2L2/G.726

Voice Intercom

Support

Stream

Support three streams

Internet Protocol

IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP

,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE

Time Display

Support

Standard

ONVIF, CGI, GB/T28181, PISA

IE browser

Support IE7 or above, Google, Firefox, Apple

Security

Password protection, Multiple access control

Image Sensor

1/2.8" interline-transfer CCD

Effective pixel

1.3MP, 2MP, 3MP

Min. Illumination

Color 0.05Lux   B/W: 0.01Lux

Day&night

Auto/ Color/ BW

S/N ratio

＞52dB（AGC off）

Gain

off/ lower/ higher

White Balance

Auto/ Manual/ Auto tracking white balance/ indoor/outdoor/ Sodium Lamp/ Fluorescent Lamp

3D DNR

Support

BLC

ON/OFF

Image setting

Mirror, Saturation, Brightness, Contrast, Sharpness adjustable

Optical zoom

20X / 30X

Cable

integrated cable

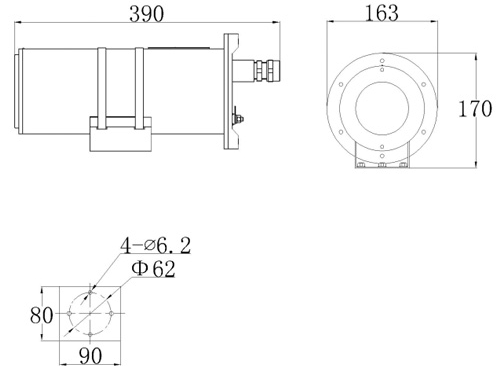

Size

390*163*170mm

Weight

7.5kg

Mounted

wall, pole

Wall bracket

SP16
