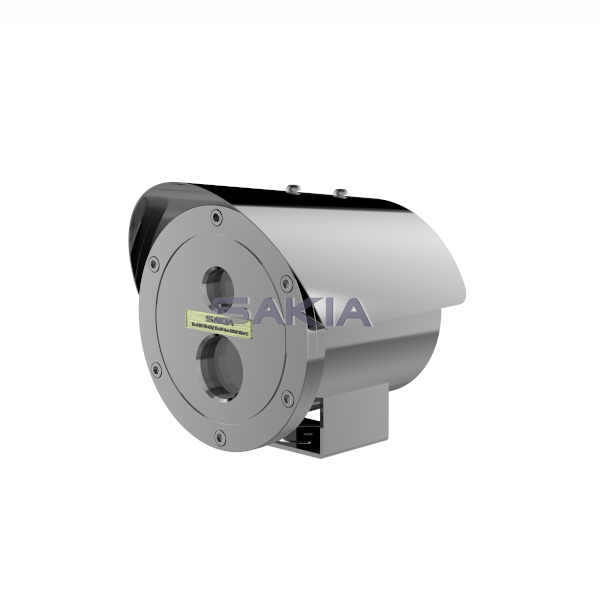

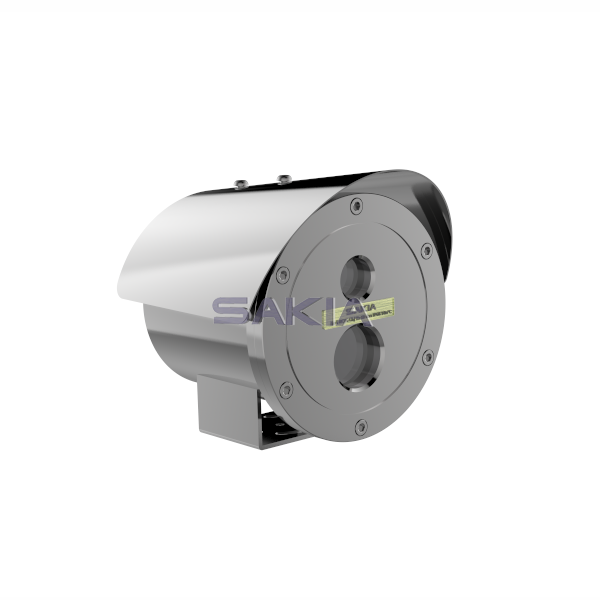

SH30 Explosion Proof Infrared Camera

Camera

Image Sensor:

1/2” 5Megapixel progressive CMOS

Signal System:

PAL/NTSC

Min. Illumination:

0.015Lux

Shutter time:

1 s to 1/100,000 s

Slow shutter:

Support

Lens:

4/6mm fixed lens, 3-10mm Veri -focal lens

Lens Mount:

M12

Day& Night:

ICR (Auto/Schedule/Alarm Trigger)

Max. Aperture

F1.6

S/N Ratio

More than 50dB

Wide Dynamic Range:

120 dB

Digital noise reduction:

3D DNR

Compression Standard

Video Compression:

H.265/H.264/MJPEG

H.264 code profile:

Baseline profile/main profile/high profile

Video bit rate:

24Kbps~16Mbps

Audio Compression:

G.711/G.722.1/G.726/MP2L2/PCM

Audio bit rate:

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-128Kbps(MP2L2)

Dual Stream:

Yes

Triple Streams:

Yes


Max. Image Resolution:

2592(H) x1944(V)

Frame Rate:

50Hz: 25fps 5M(2592×1944)/4M(2688x1520)/3M(2304×1296/2048x1536)

60Hz: 30fps 5M(2592×1944)/4M(2688x1520)/3M(2304×1296/2048x1536)

Sub Stream:

50Hz: 25fps 1080P(1920×1080)/720P(1280×720)

60Hz: 30fps 1080P(1920×1080)/720P(1280×720)

Third Stream:

50Hz: 25fps 5M(2592×1944)/4M(2688x1520)/3M(2304×1296/2048x1536)

1080P(1920×1080)/720P(1280×720)

60Hz: 30fps 5M(2592×1944)/4M(2688x1520)/3M(2304×1296/2048x1536)

1080P(1920×1080)/720P(1280×720)

Image Enhancement:

BLC/3D DNR

Image Settings:

Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser

Target Cropping:

Support

BLC:

Support

3D DNR:

Support

ROI:

Support 4 customized region for each stream, and face dynamic tracking

Day/Night Switch:

Auto/Schedule/Triggered by Alarm In

Network

POE

IEEE 802.3af class3

Alarm Trigger:

Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception

Protocols:

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP

General Function:

Mirror, anti-flicker, heartbeat, watermark, password protection, privacy mask

System Compatibility:

ONVIF ,PSIA,CGI, ISAPI

Intelligent

Behavior analysis:

Support

Interface

Communication Interface:

1 RJ45 10M / 100M Ethernet interface

Alarm:

2 alarm input, 2 alarm output

Alarm Input:

AED 2.0

Alarm Output:

AED 2.0

On-board storage:

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Reset Button:

Yes

Smart Feature-set

Behavior Analysis:

Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal

Line Crossing Detection:

Cross a pre-defined virtual line

Intrusion Detection:

Enter and loiter in a pre-defined virtual region

Region Entrance:

Enter a pre-defined virtual region from the outside place

Region Exiting:

Exit from a pre-defined virtual region

Unattended Baggage:

Objects left over in the pre-defined region such as the baggage, purse, dangerous materials

Object Removal:

Objects removed from the pre-defined region, such as the exhibits on display.

Exception Detections:

Scene change detection, defocus detection

Recognition:

Face Detection

General

Operating Conditions:

-30 °C ~ 60 °C (-22 °F ~ 140 °F)

Humidity 95% or less (non-condensing)

Power Supply:

POE,DC12V/DC24V/DC48V

Power Consumption:

Max. 7W

Impact Protection:

IK10

IR Range:

Up to 30m

Dimensions:

Camera: 202 × 174 × 172 mm (7.95"× 6.85" × 6.77")

Package: 435 × 255 × 285 mm (17.1" × 10" × 11.2")

Weight:

7.34 kg (16.18 lbs)

Certifications

ATEX CE (EN 60950:2000),FCC: FCC Part 15 Subpart B
