SS17 Explosion Proof Pan & Tilt

  • Product description: SS17 Explosion Proof Pan Tilt
  • INQUIRY


SS17 Explosion Proof Pan & Tilt

Certificate

Certificate Mark

ExdⅡC T6 GB/DIP A20 TA, T6

Certificate No

CNEx13.9181

Standards

Q/21392SS177-2013

Mechanical

Housing

Stainless steel 304 or 316L

IP

IP68

Cable thread hole

1pcs G3/4 or NPT3/4

Electrical

Voltage

AC220V or AC24V

Power

50W

Ambient

Ambient temperature

-25 to +60℃

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)

Communication

Communication

support analog video output

485 Communication

Support Pelco-D, Pelco-P

Communicate Rate

2400 to 19200bps

Pan & Tilt

Horizontal

360°

Horizontal speed

0.1-45°/s

Vertical

-90 to +90°

General

Cable

integrated cable

Size

315*178*259mm

Weight

10.5kg

Mounted

wall, pole

Wall bracket

SP19

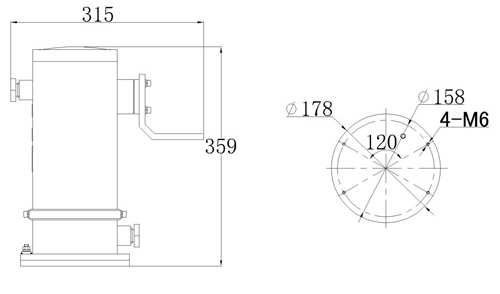

Dimension
