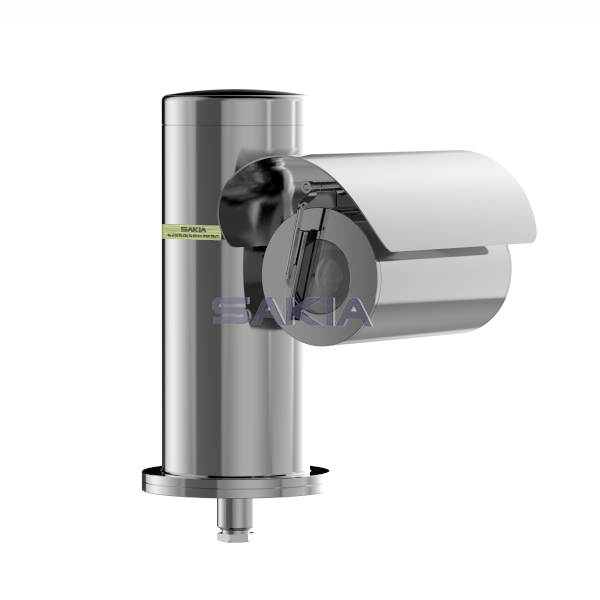

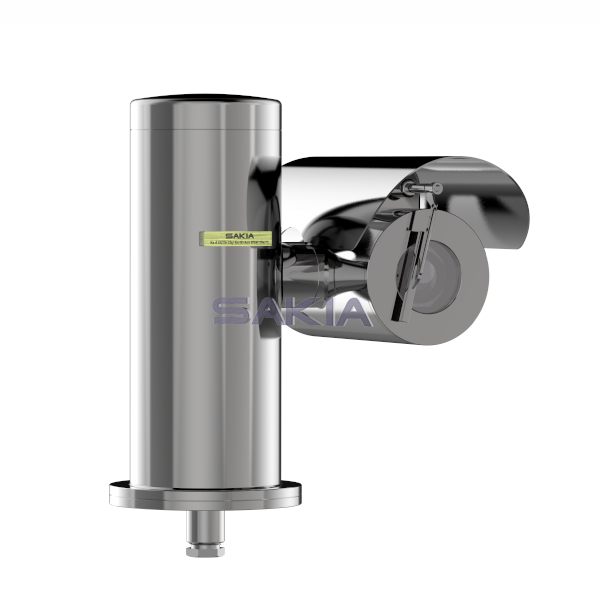

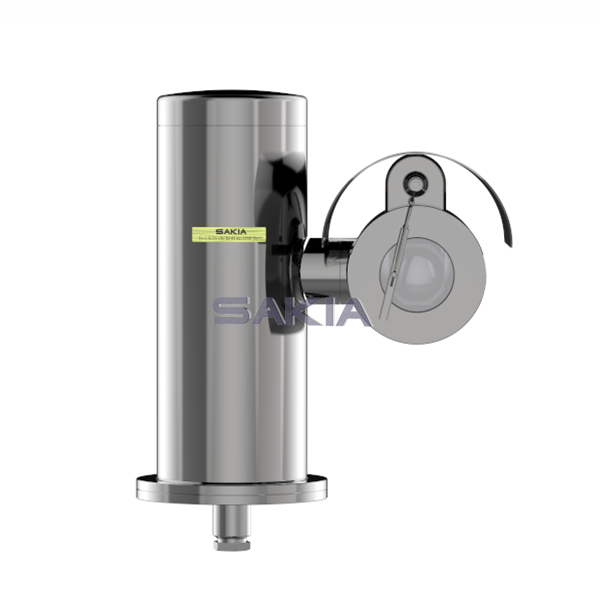

SS10 Explosion Proof PTZ Camera

Certificate Mark

ExdⅡC T6 Gb/Ext D A21 IP65 T80°C

Certificate No

CNEx14.0289

Standards

Q/21392SS102-2014

Housing

Stainless steel 304 or 316L

IP

IP65

Cable thread hole

1pcs G3/4 or NPT3/4

Wiper

yes

Voltage

AC85V～AC265V or DC24Vor AC24V

Power

35W  /55W (with thermostat)

Ambient temperature

-25 to +60℃

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)

Communication

support analog video output

485 Communication

Support Pelco-D, Pelco-P

Communicate Rate

2400 to 19200bps

Horizontal

360°

Horizontal speed

0.1-45°/s

Vertical

-90 to +90°

Image Sensor

1/3" interline-transfer CCD

Effective pixel

PAL 976*582  NTSC 976*494

Min. Illumination

Color 0.04Lux   B/W: 0.004Lux

Shutter Time

1/50(1/60) sec~ 1/10,000 sec

Horizontal resolution

700TVL (color), 720TVL (B&W)

S/N ratio

＞50dB（AGC off）

Focal Length

4-92mm, 23X/or 36X optical

Aperture Range

F1.5-F3.6

Angle of View

49-2.2 degree(Wide-Tele)

Min. Working Distance

10mm-1500mm(Wide-Tele)

Zoom Speed

Approx. 3s(Optical, Wide-Tele)

Camera address

on/off （0-254）

Focus Mode

Auto/Manual/One touch

Gain

off/ lower/ higher

Slow shutter

X256 MAX

White Balance

Auto /Indoor/Outdoor/Manual/auto tracking

Video

3D DNR, mirror, brightness,  Contrast, Sharpness adjustable

Digital zoom

X16

Zoom display

on/off

ZCF control mode

mode 1, mode 2

RS485

protocol, baud rate, address

Cable

integrated cable

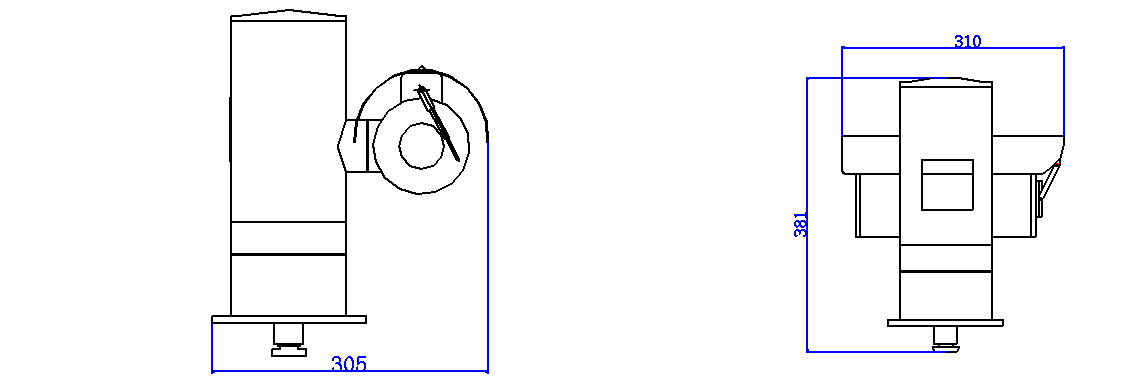

Size

310*305*381mm

Weight

17kg

Mounted

wall, pole

Wall bracket

SP20
