Explosion Proof Camera Accessories
SP15 Explosion Proof Monitor
- Stainless steel 304 or 316L
- AC85V～AC265V or DC24Vor AC24V
- 1920*1080P
- 473*200*396mm
- Product description: SP15 Explosion Proof Monitor

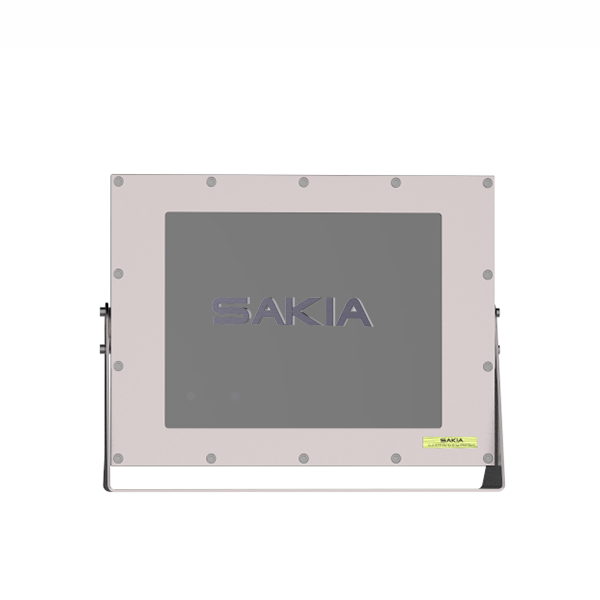

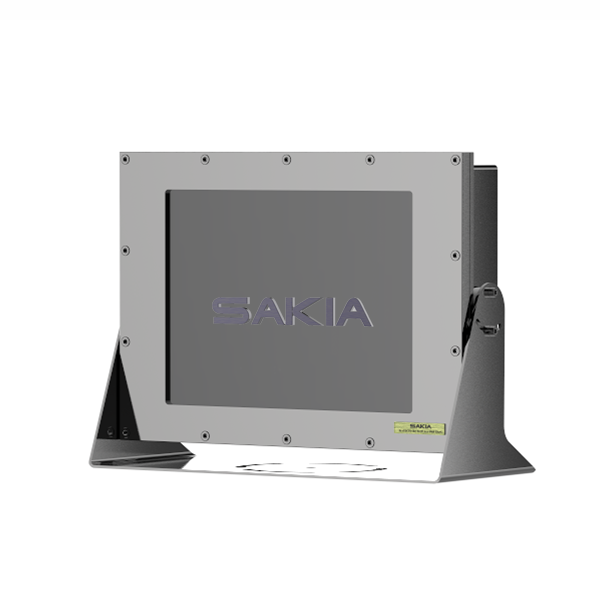

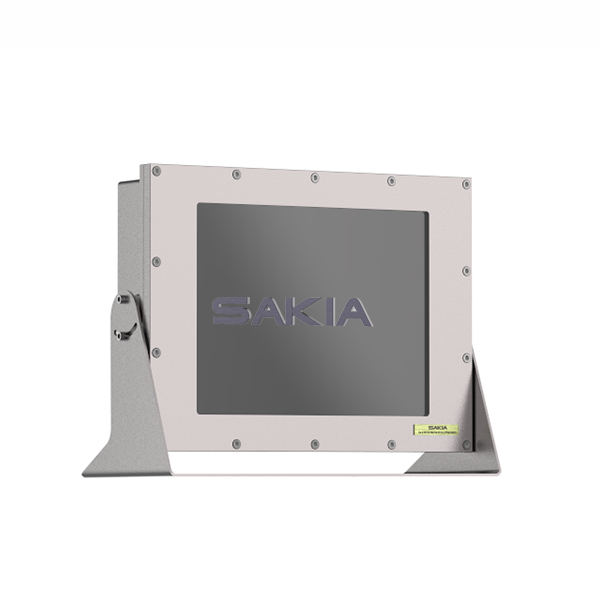

SP15 Explosion Proof Monitor
Certificate
|
Certificate Mark |
ExdⅡB T6 Gb / DIP A20 TA, T6 |
|
Certificate No |
CNEx13.4984 |
|
Standards |
Q/21392SP159-2013 |
Mechanical
|
Housing |
Stainless steel 304 or 316L |
|
IP |
IP66 |
|
Cable thread hole |
1pcs G3/4 or NPT3/4 |
Electrical
|
Voltage |
AC85V～AC265V or DC24Vor AC24V |
|
Power |
50W |
|
Surge Protect |
Optional, TVS6000V surge protect |
Ambient
|
Ambient temperature |
-25 to +60℃ / -45 to +80℃ |
|
Air pressure |
80Kpa to 106Kpa |
|
Relative Humidity |
≦95% (no condensation) |
Function
|
Dot Pitch |
0.24825mm*0.24825mm |
|
Resolution |
1920*1080P |
|
Brightness |
300cd/m2 |
|
Contrast |
1000:01:00 |
|
Response Time |
14ms (G. To G) |
|
Color |
16.7M |
|
Line Frequency |
31.5-60KHz |
|
Field Frequency |
56-75Hz, Flick-free |
|
View Degree |
Horizontal 176° |
|
Connector Port |
VGA,or BNC, S-VHS, RGB, CVBS |
General
|
Cable |
integrated cable |
|
Size |
473*200*396mm |
|
Weight |
28kg |
|
Mounted |
desk |

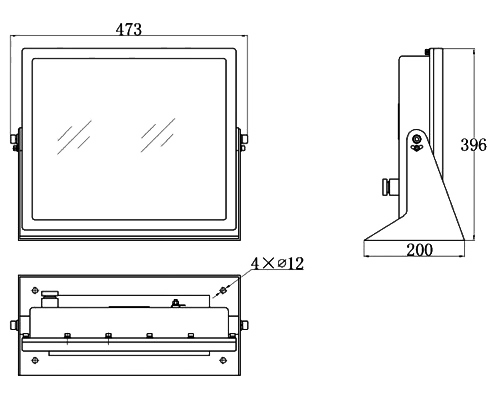

Dimension
