SH12 Explosion Proof Camera CCTV

  • support analog video output
  • 700TVL (color), 720TVL (B&W)
  • Min. Working Distance:10mm-1500mm(Wide-Tele)
  • 421*155*185mm/1.8kgs
  • Product description: SH12 Explosion Proof Camera
  • INQUIRY

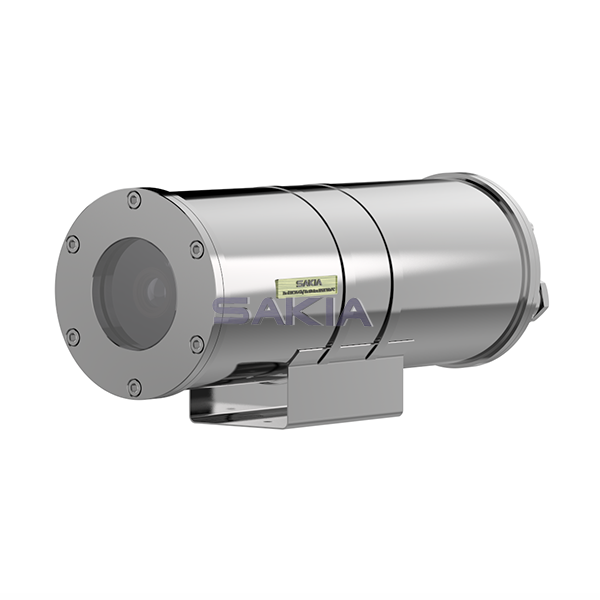

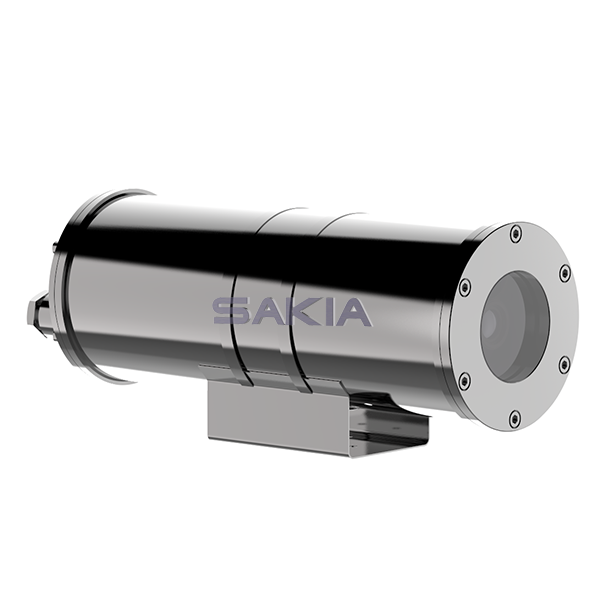

SH12 Explosion Proof Camera

Certificate

Certificate Mark

ExdⅡC T6 GB/DIP A20 TA, T6

Certificate No

CNEx15.1263

Standards

Q/21392SH12-2015

Mechanical

Housing

Stainless steel 304 or 316L

IP

IP68

Cable thread hole

2pcs G3/4 or NPT3/4

Sun-shield

No

Wiper

No

Electrical

Voltage

AC85VAC265V or DC24Vor AC24V

Power

15W/25W (with thermostat)

Surge Protect

Optional, TVS6000V surge protect

Optical Fiber output

Optional, multimode or single mode

Ambient

Ambient temperature

-25 to +60℃ / -45 to +80

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)

Communication

Communication

support analog video output

485 Communication

Support Pelco-D, Pelco-P

Communicate Rate

2400 to 19200bps

Camera

Image Sensor

1/3" interline-transfer CCD

Effective pixel

PAL 976*582  NTSC 976*494

Min. Illumination

Color 0.04Lux   B/W: 0.004Lux

Shutter Time

1/50(1/60) sec~ 1/10,000 sec

Day&Night

Auto ICR

Horizontal resolution

700TVL (color), 720TVL (B&W)

S/N ratio

50dBAGC off

Lens

Focal Length

4-92mm, 23X/or 36X optical

Aperture Range

F1.5-F3.6

Angle of View

49-2.2 degree(Wide-Tele)

Min. Working Distance

10mm-1500mm(Wide-Tele)

Zoom Speed

Approx. 3s(Optical, Wide-Tele)

Control

Camera address

on/off 0-254

Focus Mode

Auto/Manual/One touch

Gain

off/ lower/ higher

Slow shutter

X256 MAX

White Balance

Auto white balance 1/auto white balance 2/Manual/auto

Private

Off/ Mode 1/ Mode 2

Video

3D DNR, mirror, brightness,  Contrast, Sharpness adjustable

Digital zoom

X16

Zoom display

on/off

ZCF control mode

mode 1, mode 2

RS485

protocol, baud rate, address

General

Cable

integrated cable

Size

421*155*185mm

Weight

7.8kg

Mounted

wall, pole

Wall bracket

ZAZ100B

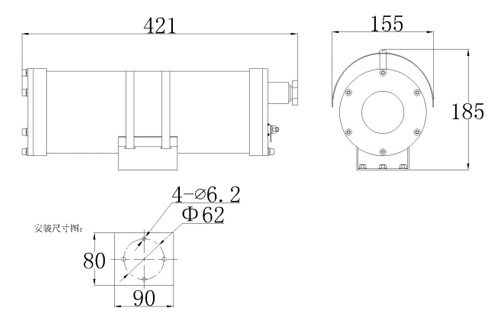

Dimension
