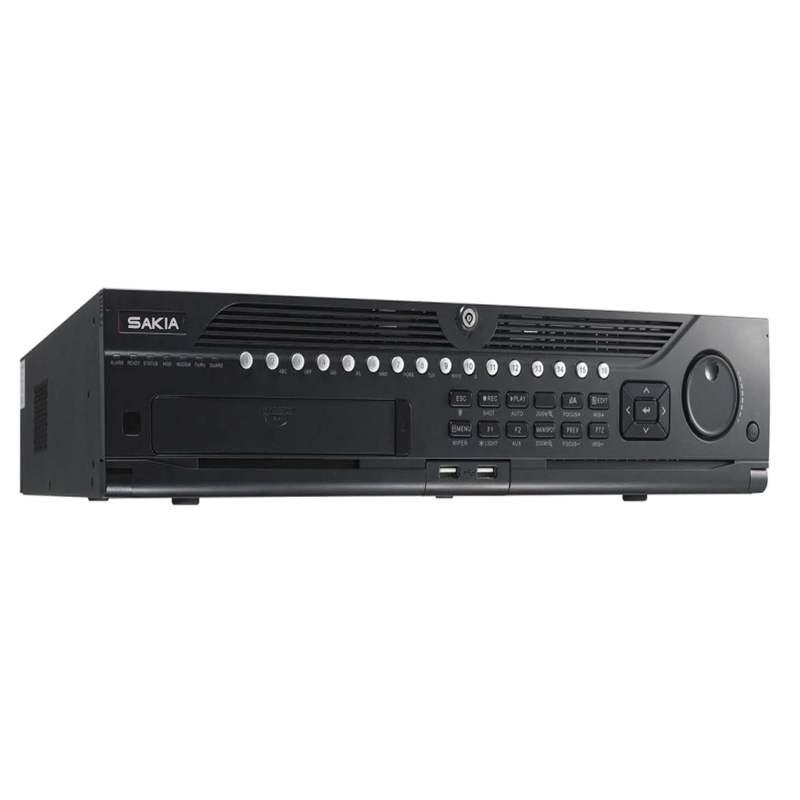

SN 62 NVR Network Video Recorder

Video/Audio Input

Two-way audio input:

1-ch, RCA (2.0 Vp-p, 1kΩ)

IP video input:

32-ch

Network

Remote connection:

128

Incoming bandwidth:

320Mbps or 200Mbps(when RAID is enabled)

Outgoing bandwidth:

256Mpbs or 200Mbps(when RAID is enabled)

Video/Audio Output

HDMI/VGA output:

2-ch, resolution:

HMDI1:4K (3840 × 2160)/60Hz,

4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

HDMI2/VGA2:1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Recording Resolution:

12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Audio Output:

2-ch, RCA (2.0Vp-p, 1KΩ)

Synchronous Playback:

16-ch

Decoding

Capability:

4-ch@8MP,16-ch@1080P

Live view / Playback:

12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Hard Disk

Interface Type:

1 eSATA interface

SATA:

8 SATA interfaces for 8 HDDs

Capacity:

Up to 6TB capacity for each HDD

Disk array

Array type:

RAID0, RAID1, RAID5, RAID10

Number of array:

4

External Interface

Network Interface:

2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces

Serial Interface:

RS-232, RS-485, Keyboard

USB Interface:

Front panel: 2 × USB 2.0

Rear panel: 1 × USB 3.0

Alarm In:

16-ch

Alarm Out:

4-ch

General

Power Supply:

100 to 240 VAC, 50 to 60 Hz

Consumption(without hard disk and POE):

≤30 W

Working Temperature:

-10 oC ~ +55 oC (+14 oF~ + 131 oF)

Working Humidity:

10 % ~ 90 %

Chassis:

19-inch rack-mounted 2U chassis

Dimensions:

445 × 470 ×90 mm (17.5"× 18.5" × 3.5")

Weight(without HDD):

≤ 10 Kg (22 lb)
